Bridgestone
Air Machine Solutions

Improve Customer Experience to generate more sales for your Tire Shop

Bennefits:

  • $100.00 – $500.00 Bridgestone Rebate
  • 1.5 – 3 Years Extended Warranty
  • Special Price and Discount

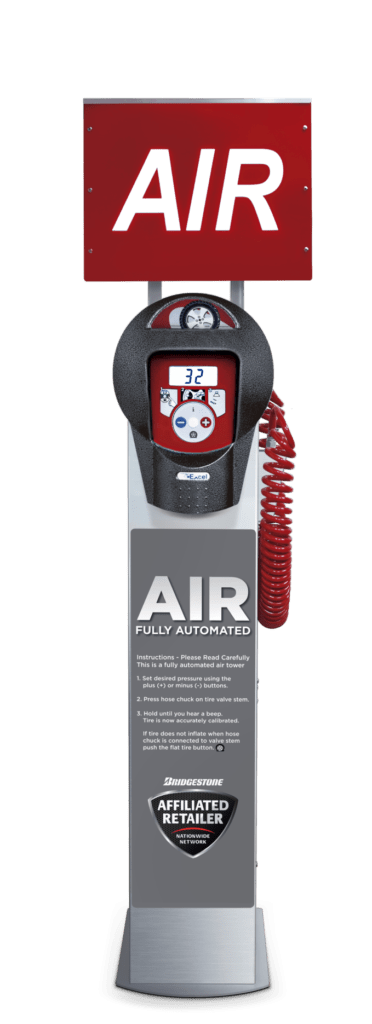

Sc05-ss | Free air Machine

Product Overview​

The SC05-SS is a digital air machine that provides automatic air calibration for customers to inflate tires with precision, speed and consistency every time.

Technology & Design

Air Machine Premium Features

Digital Air Machine

Our easy to use air machine automatically inflates and deflates a tire to within 0.5 PSI of the desired pressure.

Internal Air Compressor

Our air machines come with internal air compressor with maximum pressure up to 80 PSI.

Air Illuminated Sign (optional)

The Air Sign will make your machine stand out during the day and night.

Truck Air Compressor (Optional)

Add more power for your air machine by choosing the 3HP Air Compressor (Maximum Pressure 120 PSI).

Customizable Decal (Optional)

All air machine decals can be fully customized with your business logo, color, instructions information and layout.

Other Features:

Water Kit, Heater, Wireless Monitoring System, Remote Control, Choose Vending Time / Price and more.

Parts Included

Open End Hold-on Chuck
Open End Hold-on Chuck
30ft Coil Hose
Internal Air Compressor (80 PSI)
Internal Air Compressor (80 PSI)
Product NameSC05-SS Free Air Machine
Dimensions

SC05-SS (w/ Vacuum)

Height: 53.44 inches (136.00 cm)
Width: 26.69 inches (68.00 cm)

SC05-SS (w/o Vacuum)

Height: 49.87 inches (126.67 cm)
Width: 11.00 inches (28.00 cm)

Weight

SC05-SS (w/ Vacuum)

160 lbs (72.60 kg)

SC05-SS (w/o Vacuum)

110 lbs (49.90 kg)

Voltage110v
Electrical Frequency60 Hz
Electrical Consumption13 AMPS or 21 AMPS (3HP Truck Air Compressor)
Recommended Circuit Breaker20 A – Class C or 30 A – Class C (3HP Truck Air Compressor)
Air Pressure Default Setting32 PSI
Air Calibration Range4 – 80 PSI or 4 – 120 PSI (3HP Truck Air Compressor)
Average Air Flow3.4 – 2.5 CFM or 5.3 – 4.2 CFM (3HP Truck Air Compressor)
Max Pressure Output80 PSI or 120 PSI (3HP Truck Air Compressor)
Operational Temperature (w/ Heater)-30 – 140˚ F
Air Relative Humidity w/o Condensation0 – 95%
Accuracy< 1 % F.S.
Automatic Tire Inflator
PNT PRO | Automatic Tire Inflator

Product Overview​

This commercial tire inflator is both designed and manufactured for all professional applications. Built to inflate a high demand of tires per day with precision, speed and consistency every time.

attractive design

Main Product Features

Digital Air Machine

Our easy to use air machine automatically inflates and deflates a tire to within 0.5 PSI of the desired pressure.

Modern design

Designed to be easy, clear & function accurately, suitable for indoor and outdoor use.

Crystal Display with Internal Illimitation

Large LCD display with back-light that provides easy tire pressure reading.

Modern Design Air Machine
Air and Nitrogen Compatible

The Air Sign will make your machine to stand out during the day and at night.

Pressure Unit Conversion

Highly accurate sensors providing precision, speed and safety while inflating tires in PSI or BAR.

Vehicles:

Ideal for cars, trucks, motorcycles, large vehicles, bus, trucks and more.

Parts Included

Excel Air Machine Lock on Open End-Chuck
Open End Lock-on Chuck
30ft Coil Hose
Wall Bracket
Wall Bracket
Product NamePNT PRO Automatic Tire Inflator
DimensionsHeight: 8.26 inches (21.00 cm)
Width: 8.26 inches (21.00 cm)
Weight3.80 lbs (1.70 kg)
Voltage110v
Electrical Frequency50 / 60 Hz
Electrical Consumption10 AMPS
Air Pressure Default Setting32 PSI
Air Calibration Range4 – 145 PSI
Average Air Flow3.4 – 2.5 CFM
Max Pressure Output145 PSI
Operational Temperature (w/ Heater)14 – 122˚ F
Air Relative Humidity w/o Condensation0 – 95%
Accuracy< 1 % F.S.
CompatibleAir and Nitrogen
