SC05-SS Calculator

Save time, improve customer experience, and increase technician safety with consistent and precise air pressure calibration.
The SC05 and Wall Mount digital air machines will attract customers to your shop, and motivate them to come back.
With a self-service option for your customers, tire technicians can stay focused on other tasks at hand.
Tire techs can now make proper inflation a seamless part of the standard operating procedure — achieving accuracy within .5 PSI in just seconds.
Digital air calibration guarantees precise air pressure delivery to vehicle tires, reducing the risk of accidents caused by over-inflation.
This air machine features our easy-to-use digital air inflation system, a customizable design, and premium upgrades such as an LED illuminated sign and heater option.
Our most compact and convenient air machine yet. Designed to save you space and time with its smaller footprint and easy installation.
This commercial tire inflator is both designed and manufactured for all professional applications. Built to inflate a high demand of tires per day with precision, speed and consistency every time.

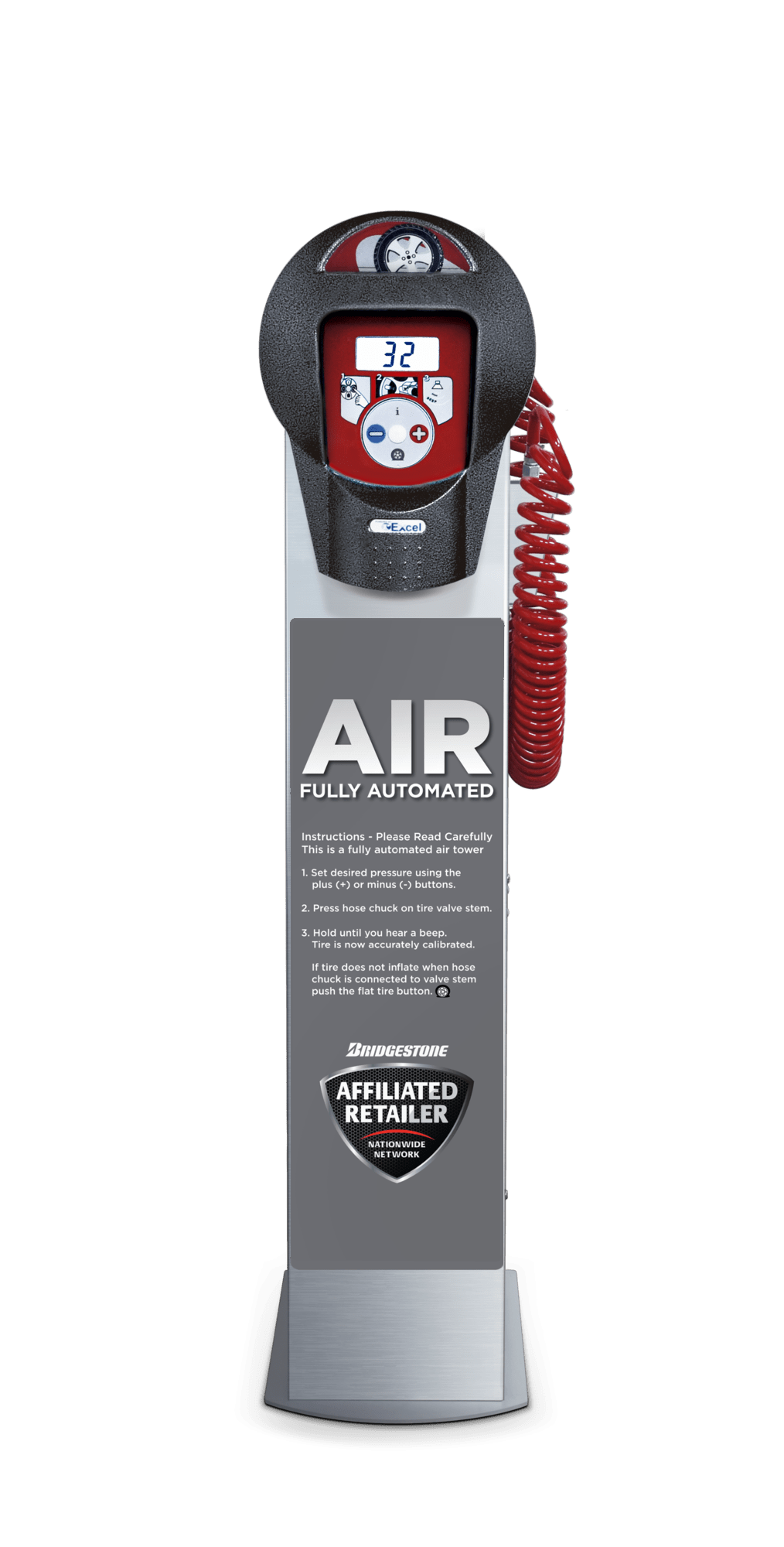

Product Name | SC05-SS Free Air Machine |
---|---|
Dimensions | SC05-SS (w/ Vacuum) Height: 53.44 inches (136.00 cm) SC05-SS (w/o Vacuum) Height: 49.87 inches (126.67 cm) |
Weight | SC05-SS (w/ Vacuum) 160 lbs (72.60 kg) SC05-SS (w/o Vacuum) 110 lbs (49.90 kg) |
Voltage | 110v |
Electrical Frequency | 60 Hz |
Electrical Consumption | 13 AMPS or 21 AMPS (3HP Truck Air Compressor) |
Recommended Circuit Breaker | 20 A – Class C or 30 A – Class C (3HP Truck Air Compressor) |
Air Pressure Default Setting | 32 PSI |
Air Calibration Range | 4 – 80 PSI or 4 – 120 PSI (3HP Truck Air Compressor) |
Average Air Flow | 3.4 – 2.5 CFM or 5.3 – 4.2 CFM (3HP Truck Air Compressor) |
Max Pressure Output | 80 PSI or 120 PSI (3HP Truck Air Compressor) |
Operational Temperature (w/ Heater) | -30 – 140˚ F |
Air Relative Humidity w/o Condensation | 0 – 95% |
Accuracy | < 1 % F.S. |
Product Name | SCWM-23 Wall Mounted Air Machine |
---|---|
Dimensions | Height: 20.00 inches (56.52 cm) |
Weight | 43 lbs (27.94 kg) |
Voltage | 110v |
Electrical Frequency | 60 Hz |
Electrical Consumption | 13 AMPS |
Recommended Circuit Breaker | 20 A – Class C |
Air Pressure Default Setting | 32 PSI |
Air Calibration Range | 4 – 80 PSI |
Average Air Flow | 3.4 – 2.5 CFM |
Max Pressure Output | 80 PSI |
Operational Temperature (w/ Heater) | -30 – 140˚ F |
Air Relative Humidity w/o Condensation | 0 – 95% |
Accuracy | < 1 % F.S. |
Product Name | PNT PRO Automatic Tire Inflator |
---|---|
Dimensions | Height: 8.26 inches (21.00 cm) Width: 8.26 inches (21.00 cm) |
Weight | 3.80 lbs (1.70 kg) |
Voltage | 110v |
Electrical Frequency | 50 / 60 Hz |
Electrical Consumption | 10 AMPS |
Air Pressure Default Setting | 32 PSI |
Air Calibration Range | 4 – 145 PSI |
Average Air Flow | 3.4 – 2.5 CFM |
Max Pressure Output | 145 PSI |
Operational Temperature (w/ Heater) | 14 – 122˚ F |
Air Relative Humidity w/o Condensation | 0 – 95% |
Accuracy | < 1 % F.S. |
Compatible | Air and Nitrogen |
