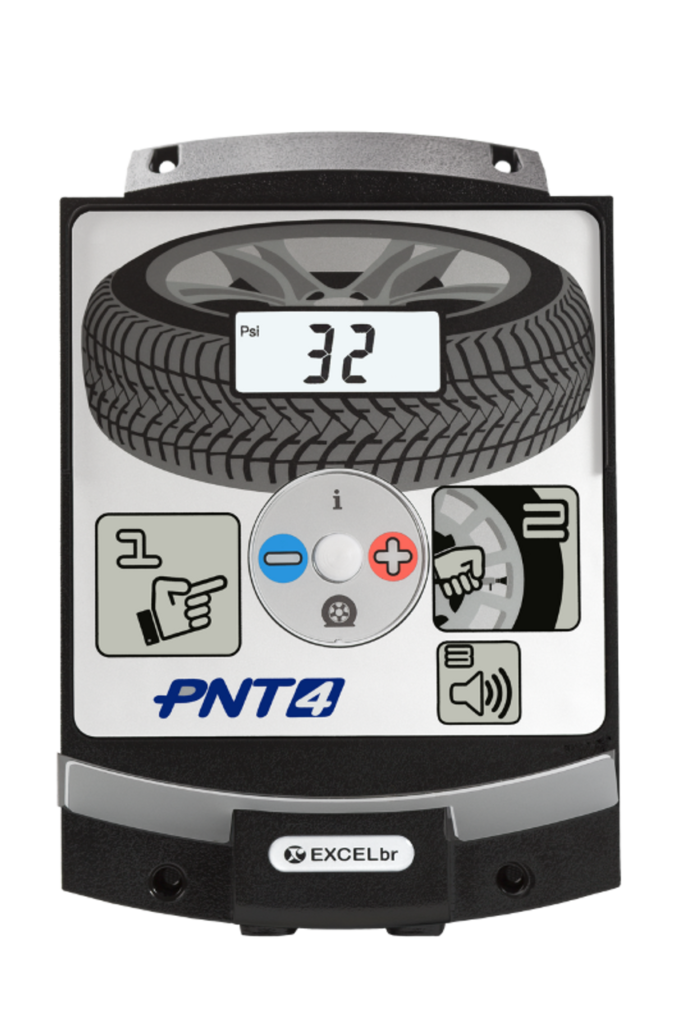

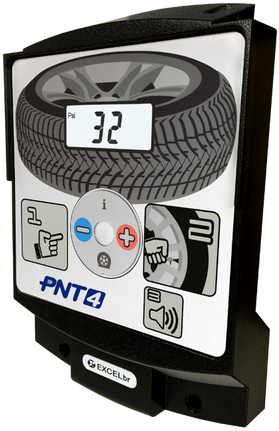

PNT 4 Automatic Tire Inflator

Designed specifically for outdoor conditions, this professional automatic tire inflator is ideal for businesses seeking a digital air solution to accurately calibrate vehicle tires up to 145 PSI.

Tasca Automotive Group has been a dedicated user of the Excel Tire Gauge PNT 4 Tire Inflators for many years. Not only do we find them to be extremely accurate when calibrating tire pressure, but their ease of use helps to make our technicians more efficient. In our opinion, Excel Tire Gauge makes a product that stands the test of time, and most importantly, they stand behind it every step of the way!
Tasca_New_2
Don Belanger
Team Manager, Tasca Automotive Group

Key Features

Digital Technology

The PNT 4 Automatic Tire Inflator features advanced digital technology that ensures precise tire inflation every time, eliminating guesswork and improving accuracy and convenience for technicians.

Modern Design

A sleek and streamlined design with a large illuminated LCD display for easy readability.

Simple Installation

This streamlined design can be installed anywhere an exterior electrical outlet is available.

Air & Nitrogen Compatible

Works seamlessly with both air and nitrogen, providing technicians with the ultimate convenience.

Versatile Usage

Ideal for cars, motorcycles, and large vehicles such as buses, trucks, trailers, and more.

Parts included: Open End Lock-On Chuck, and 30ft Coil Hose

Product Overview

Built to Perform.
Designed to Impress.

Developed for professional use, the PNT 4 Automatic Tire Inflator is ideal for outdoor conditions and built to inflate a high demand of tires per day with precision, speed, and consistency every time.

Technical Specifications

  • Product Name

    PNT 4

  • Dimensions

    Height: 13.00 inches (33.00 cm)
    Width: 9.05 inches (23.00 cm)

  • Weight

    3.80 lbs (1.70 kg)

  • Voltage

    110v

  • Electrical Frequency

    50 / 60 Hz

  • Electrical Consumption

    10 AMPS

  • Air Pressure Default Setting

    32 PSI

  • Air Calibration Range

    4 – 145 PSI

  • Average Air Flow

    0.5 m3/min
    17.7 ft3/min

  • Max Pressure Output

    145 PSI

  • Operational Temperature (w/ Heater)

    14 – 122˚ F

  • Air Relative Humidity w/o Condensation

    0 – 95%

  • Accuracy

    < 1 % F.S.

  • Compatible

    Air & Nitrogen
