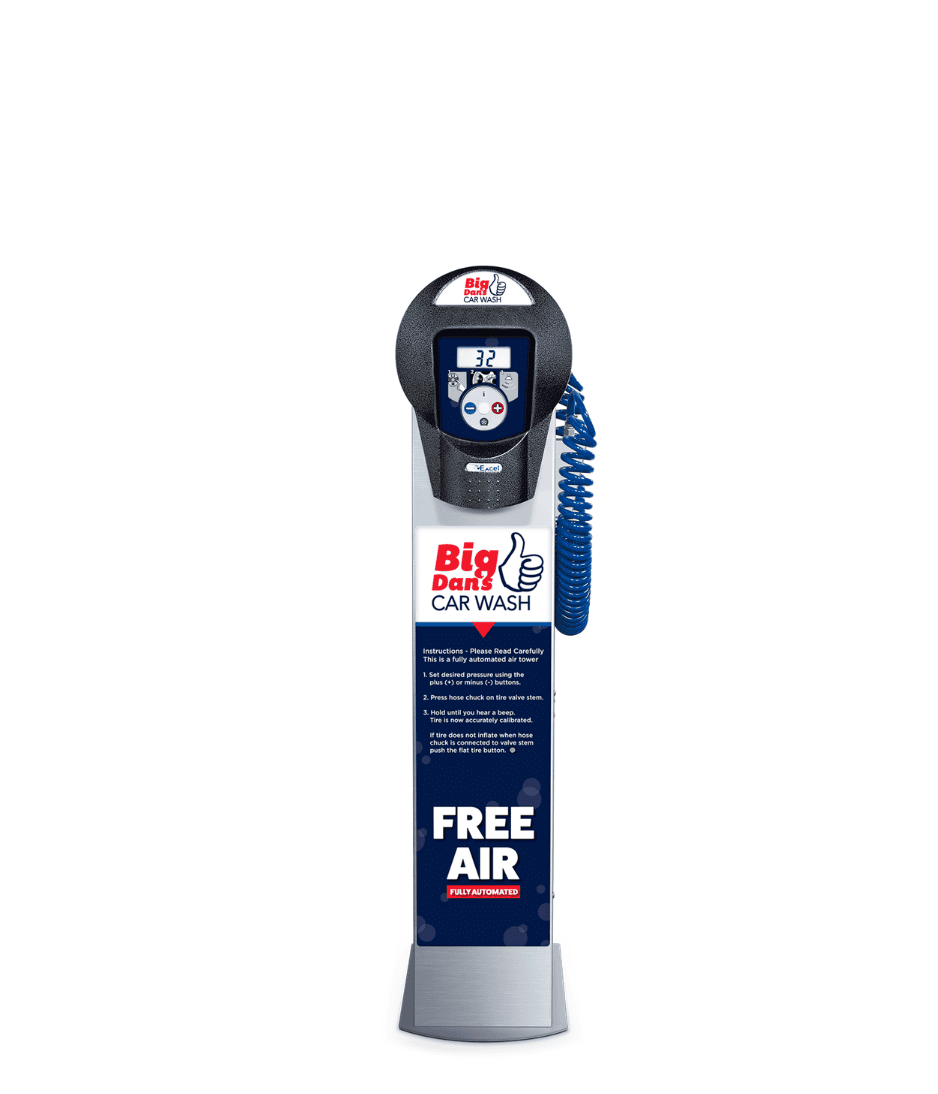

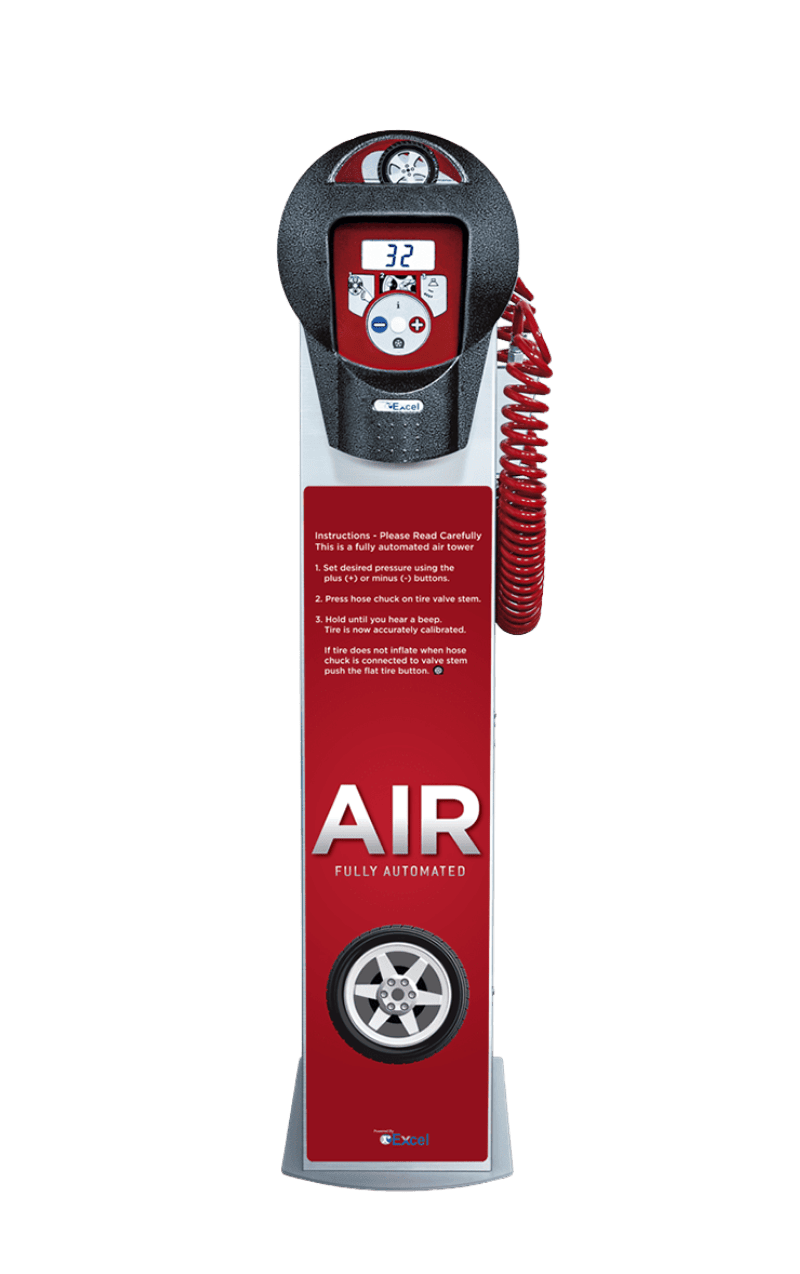

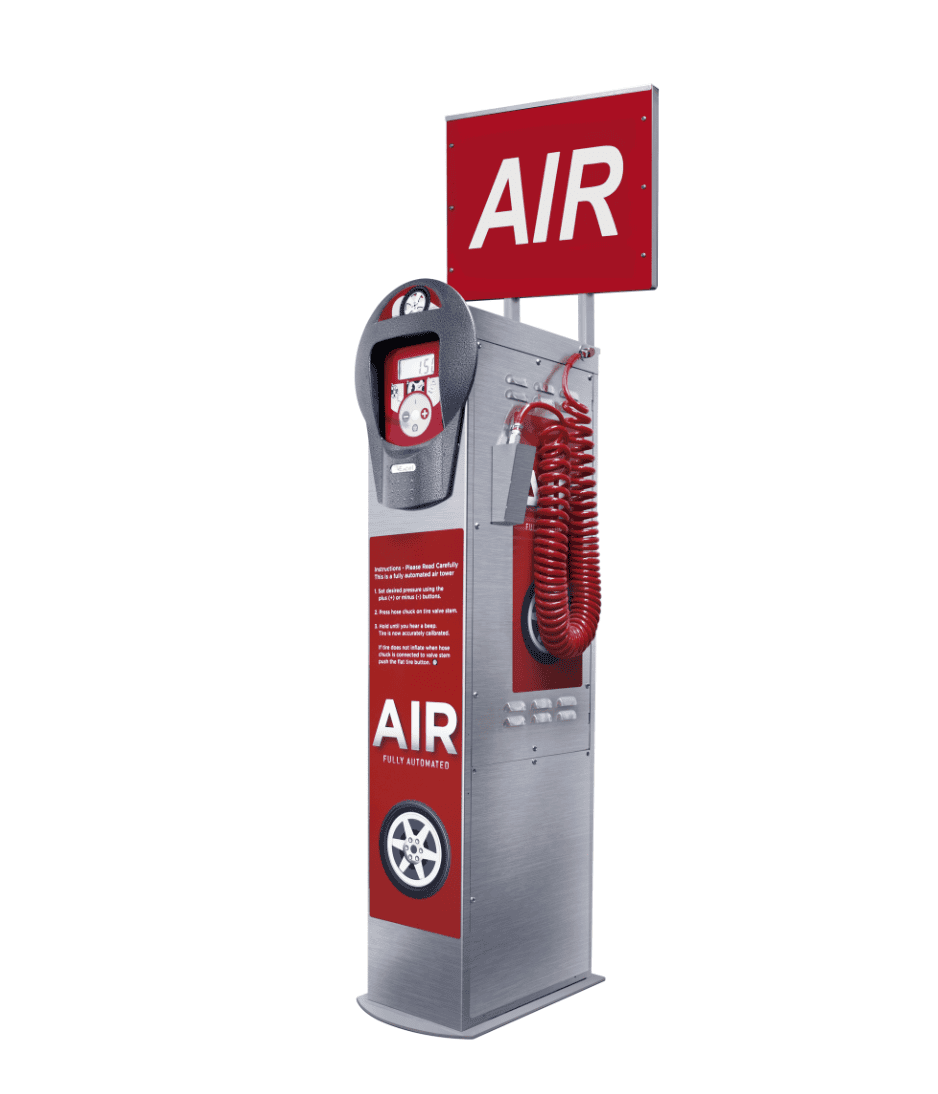

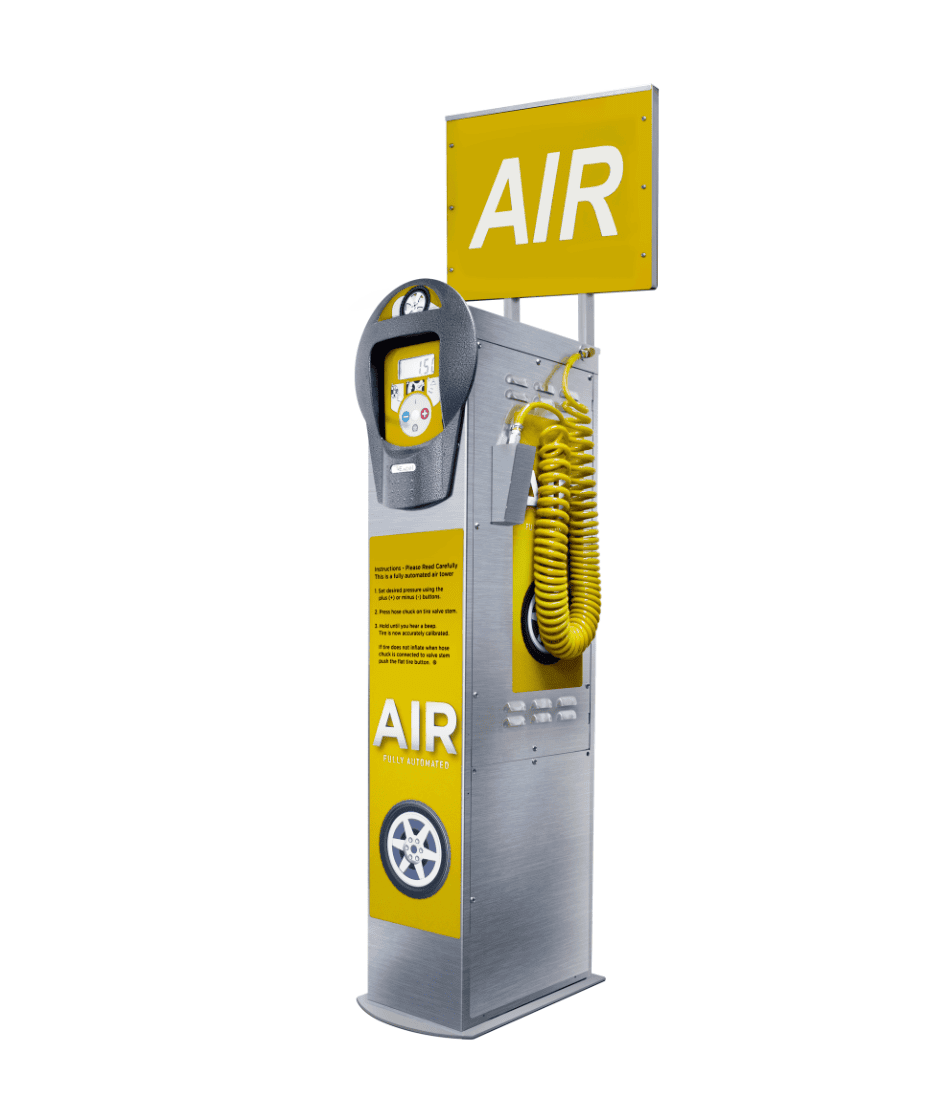

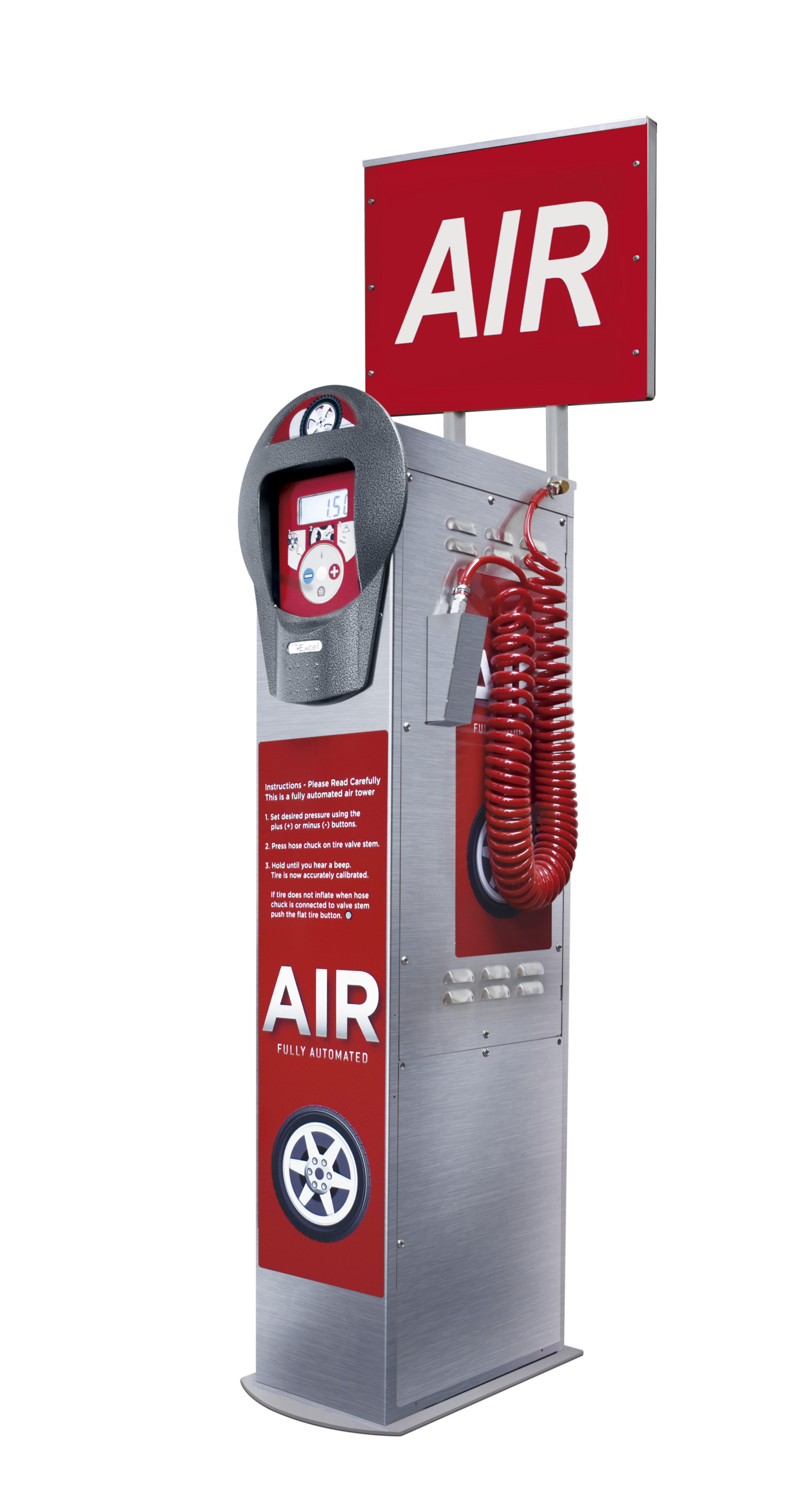

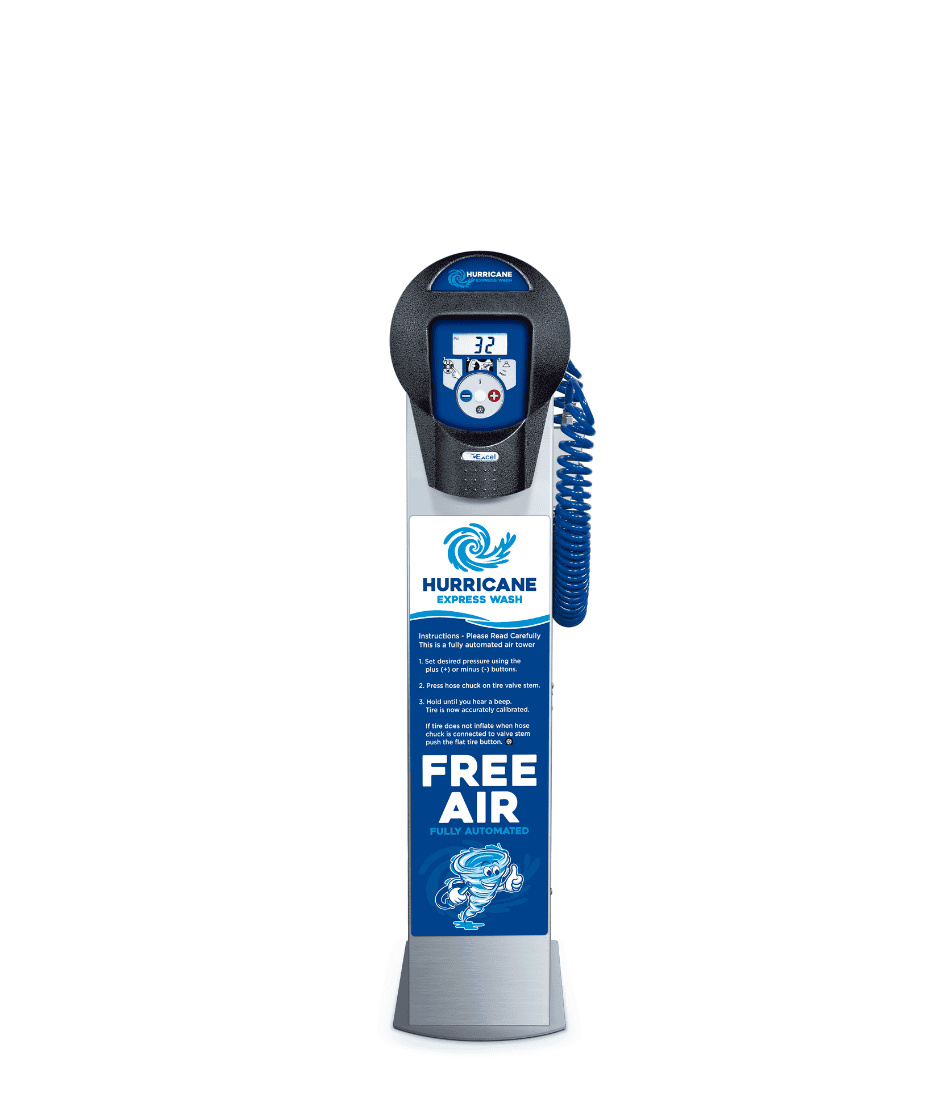

SC05-SS
Free Air Machine

Dependable and recognizable air machine, the SC05-SS features digital air inflation, stainless steel cabinet, internal air compressor, vacuum, air illuminated sign and more.

Recommended for:

Gas Station and C-Store, Car Wash, Auto Shops, Tire Shops, Auto Repairs Fleet, Car Dealerships, Auto Rentals, Workplace and Residential

SC05-SS Free Air Machine
Sc05-ss | Free air Machine

Product Overview​

The SC05-SS is a digital air machine that provides automatic air calibration for customers to inflate tires with precision, speed and consistency every time.

Technology & Design

Air Machine Premium Features

Digital Air Machine

Our easy to use air machine automatically inflates and deflates a tire to within 0.5 PSI of the desired pressure.

Vacuum Machine (Optional)

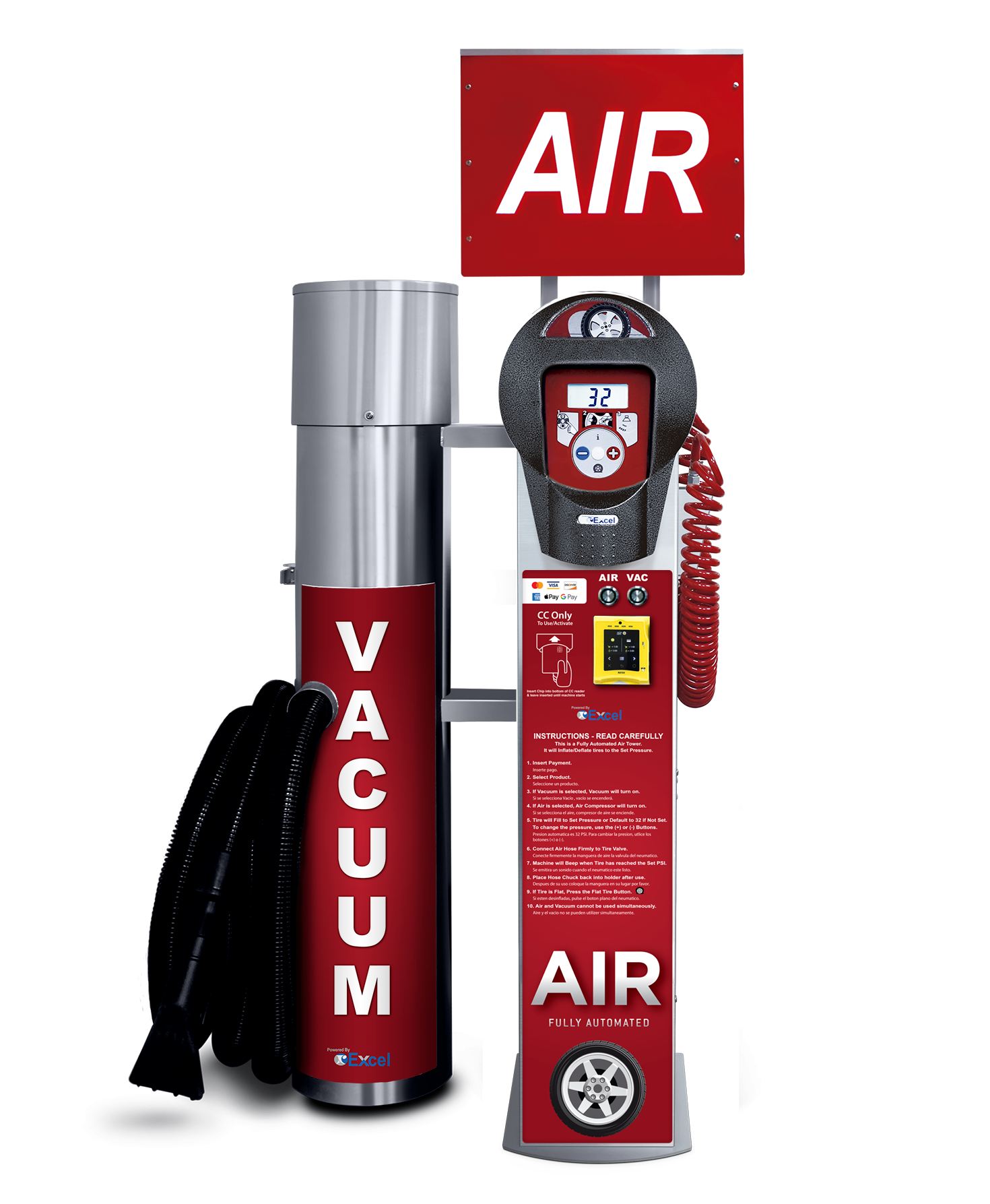

Digital air and vacuum machine in one product, offer more services to your customers by adding the vacuum attachment.

Internal Air Compressor

Our air machines come with internal air compressor with maximum pressure up to 80 PSI.

Credit Card Payment (Optional)

Cashless payment system offers customers a simple, efficient, and convenient way to pay for air and vacuum service.

Air and Vacuum Machines
Truck Air Compressor (Optional)

Add more power for your air machine by choosing the 3HP Air Compressor (Maximum Pressure 120 PSI).

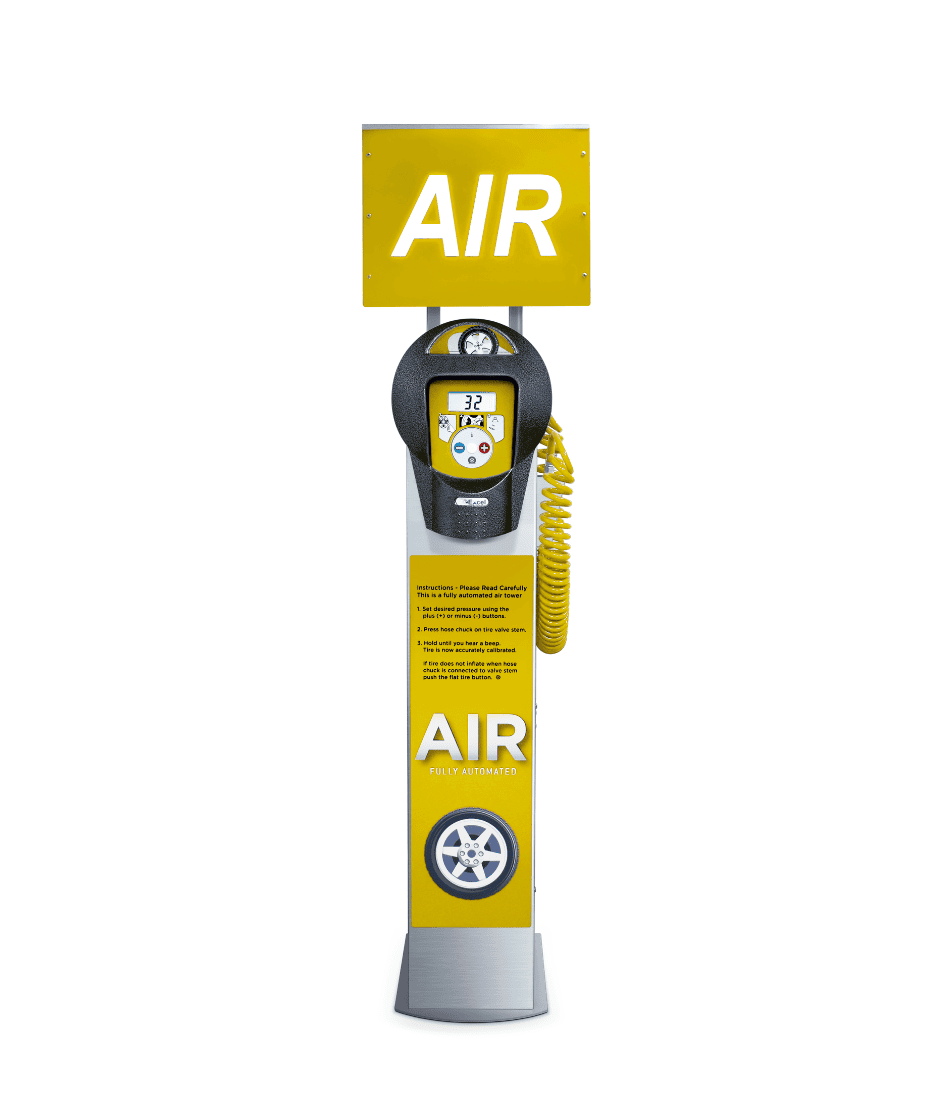

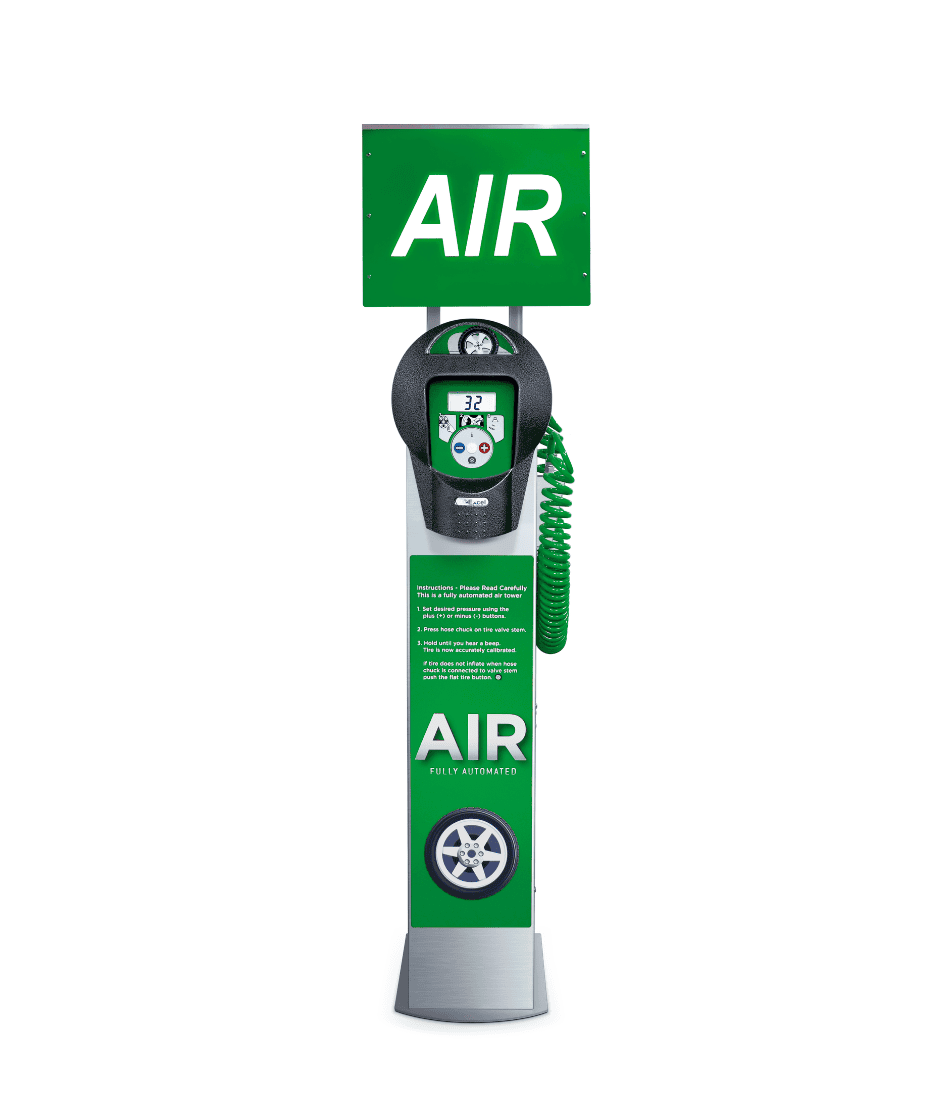

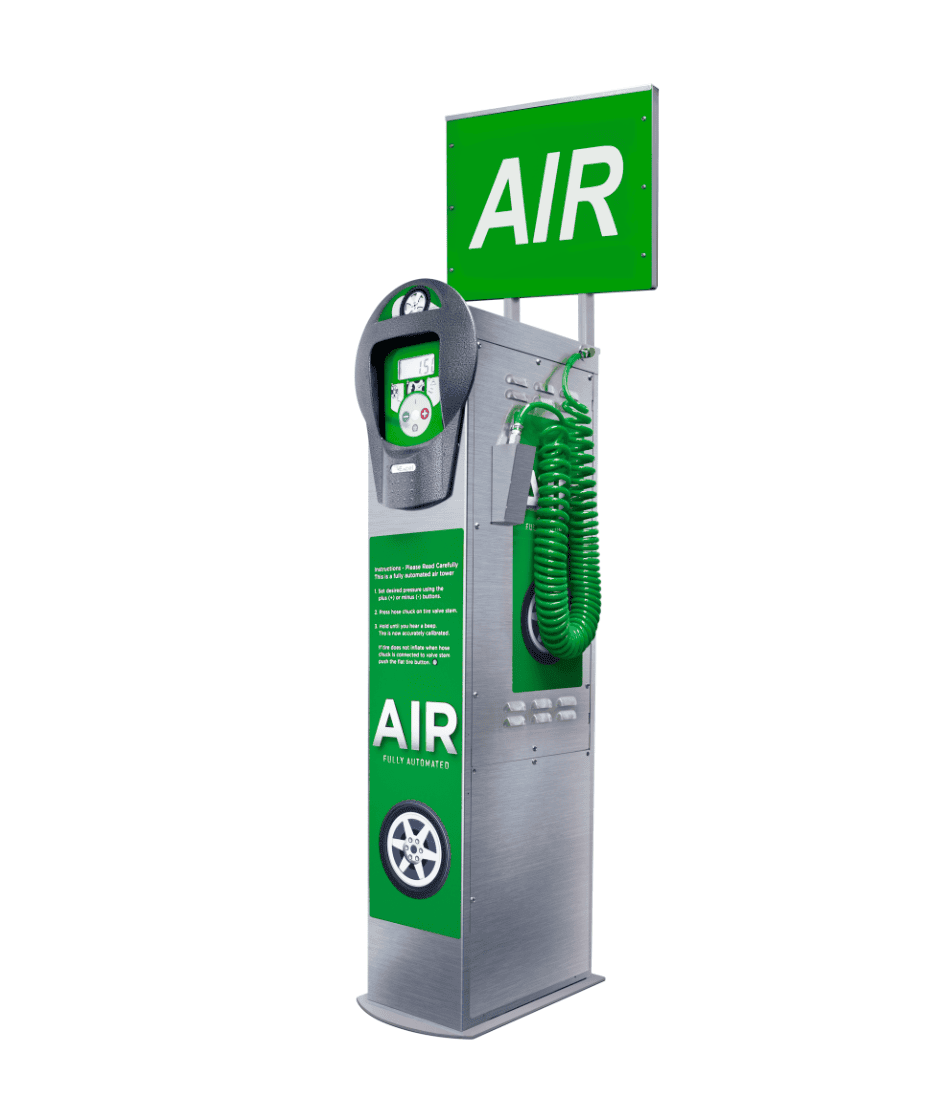

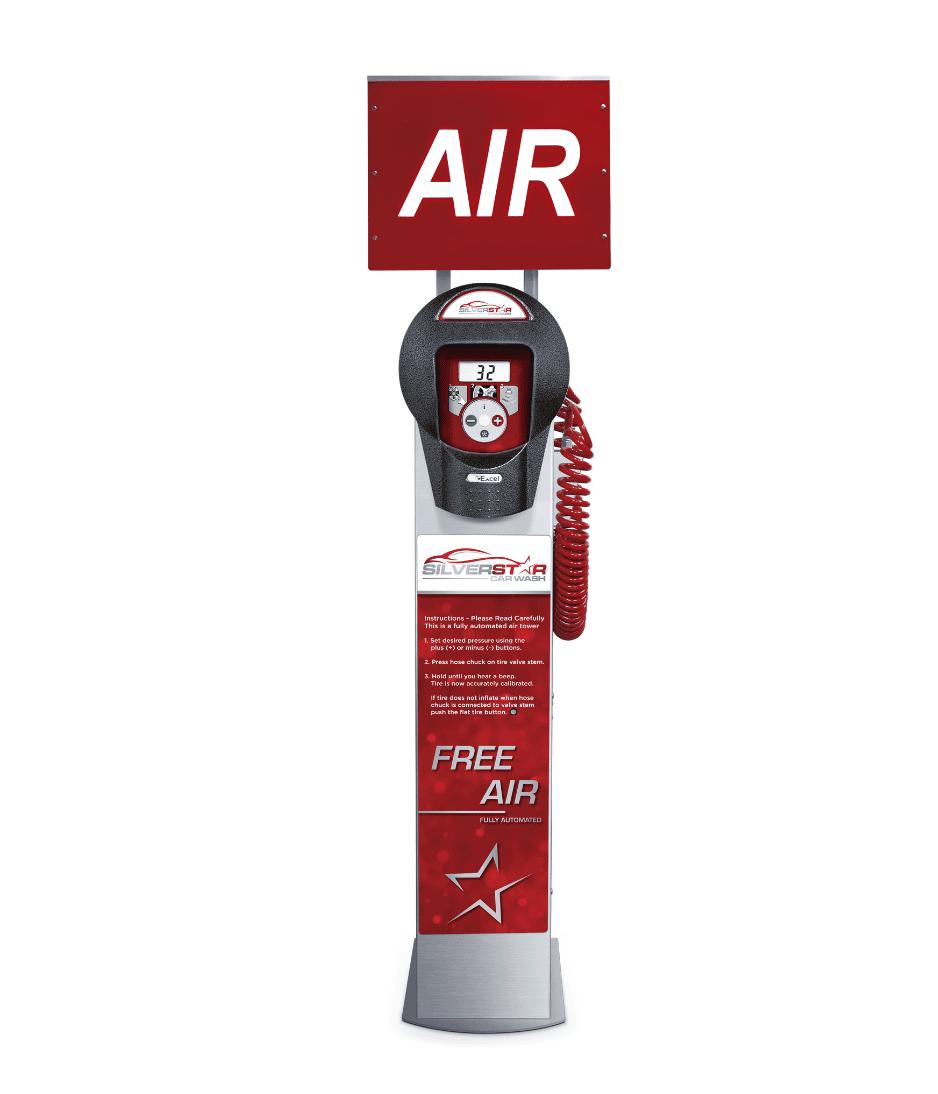

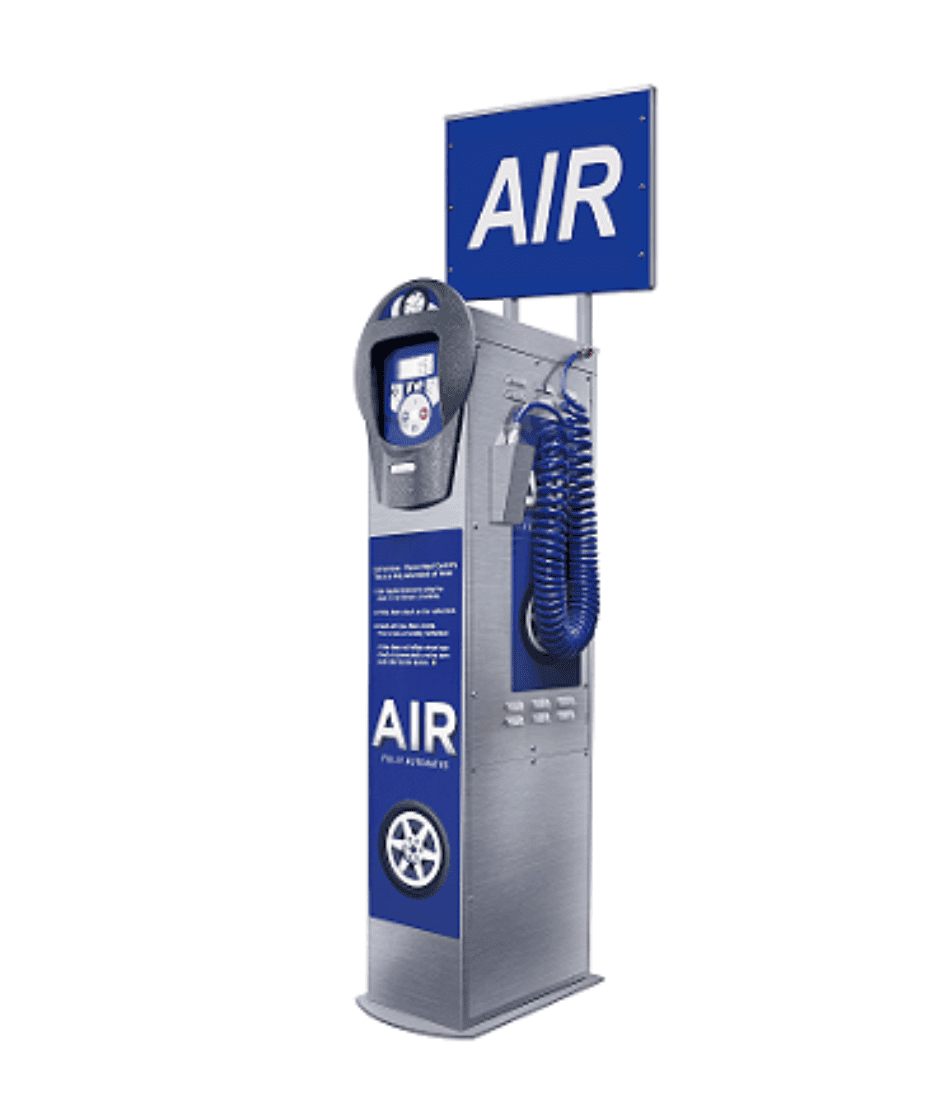

Air Illuminated Sign (optional)

The Air Sign will make your machine stand out during the day and night.

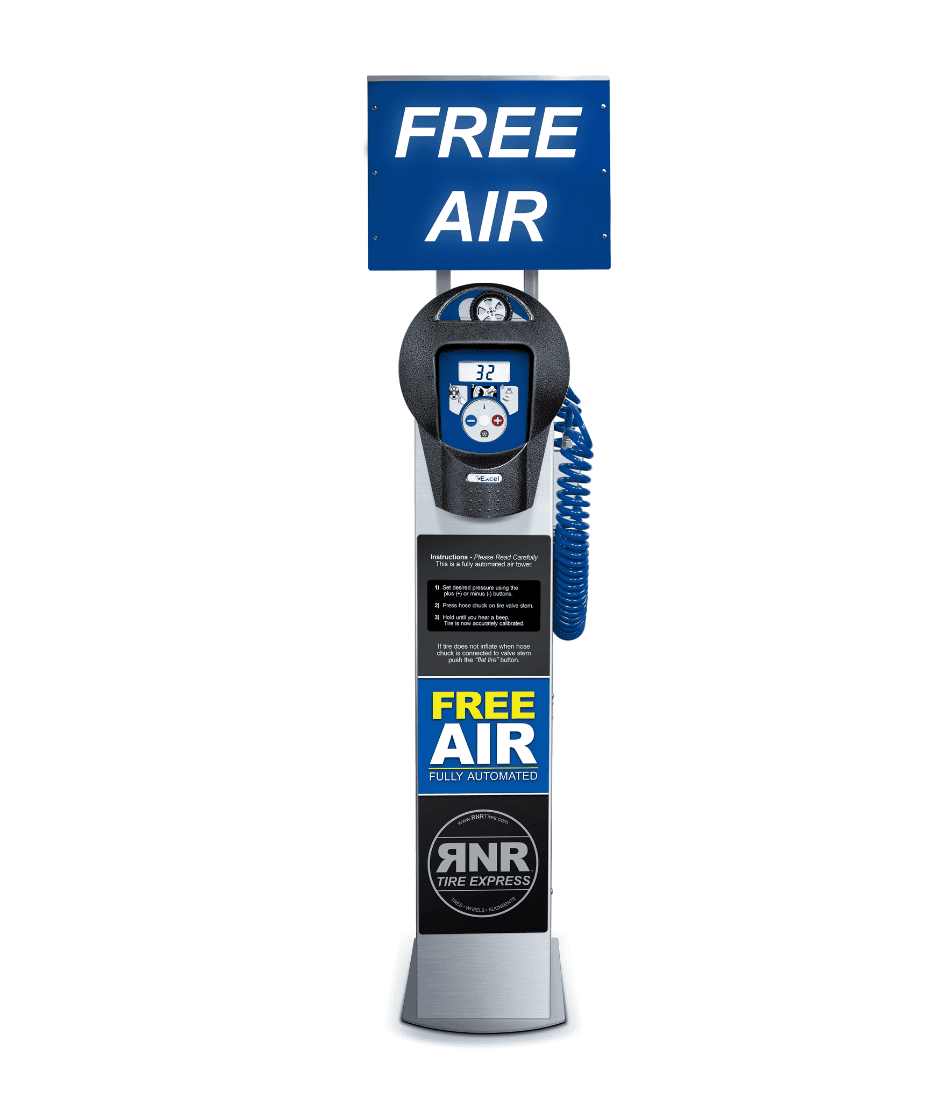

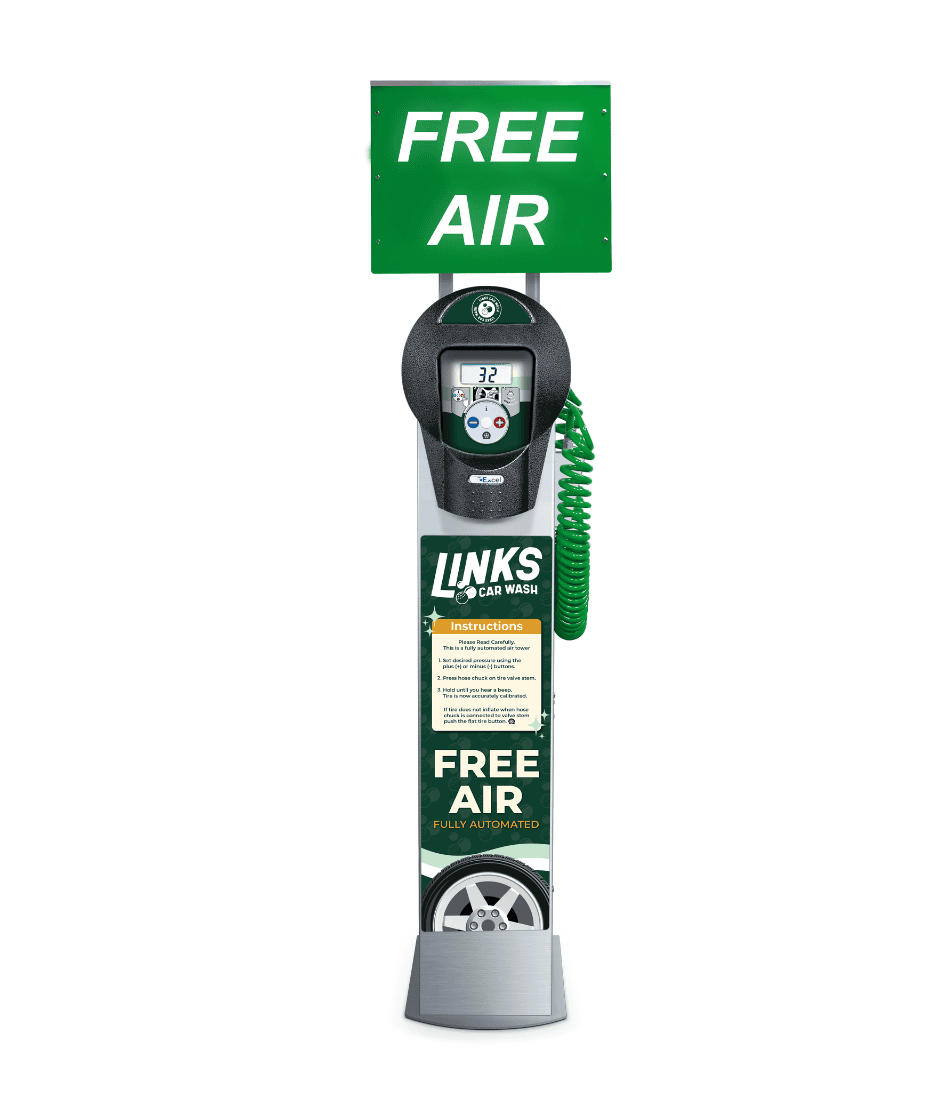

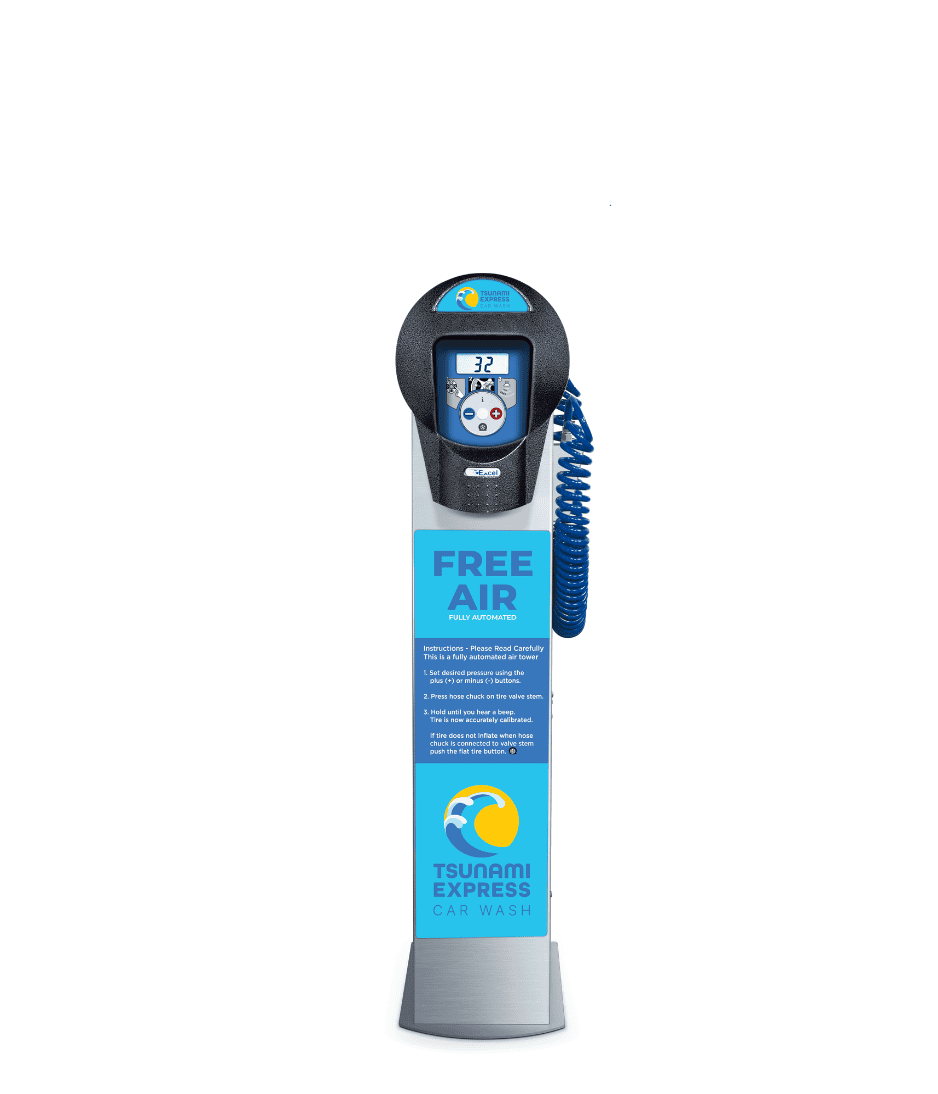

Customizable Decal (Optional)

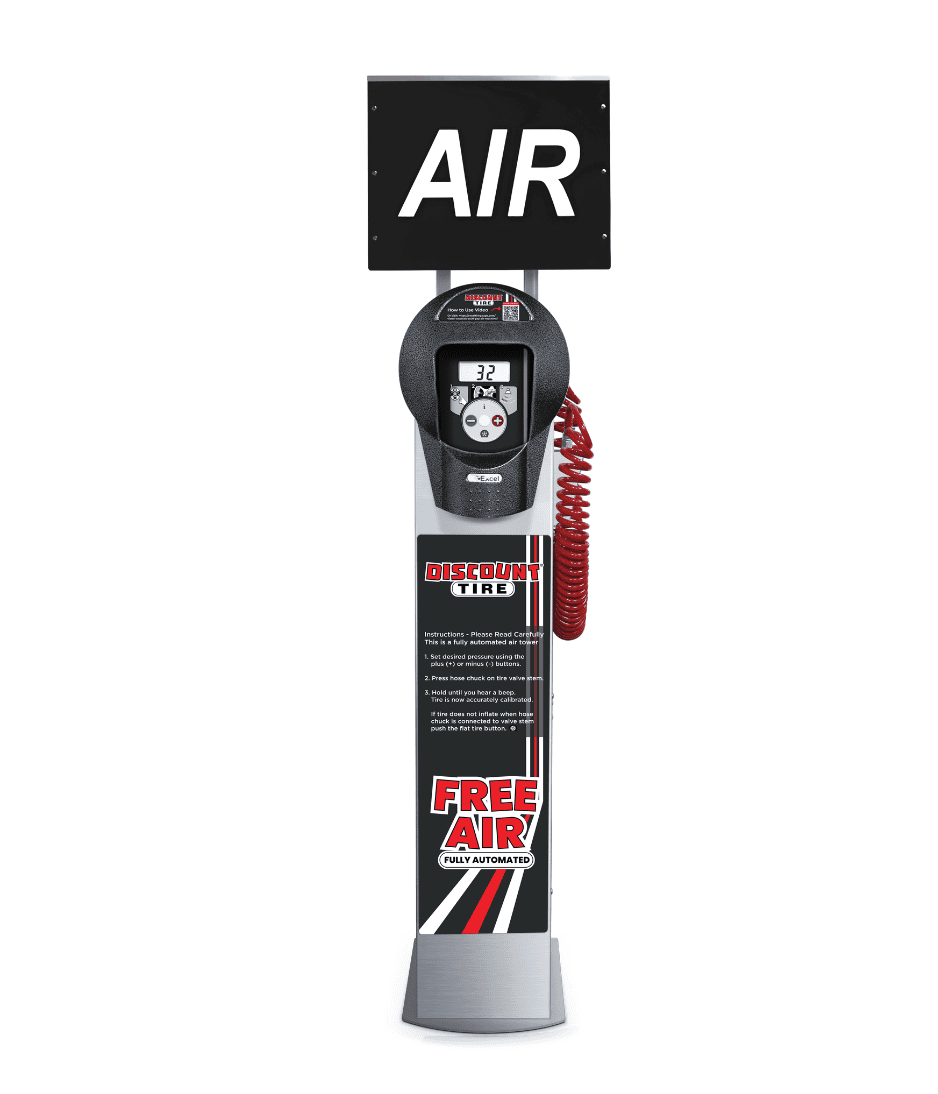

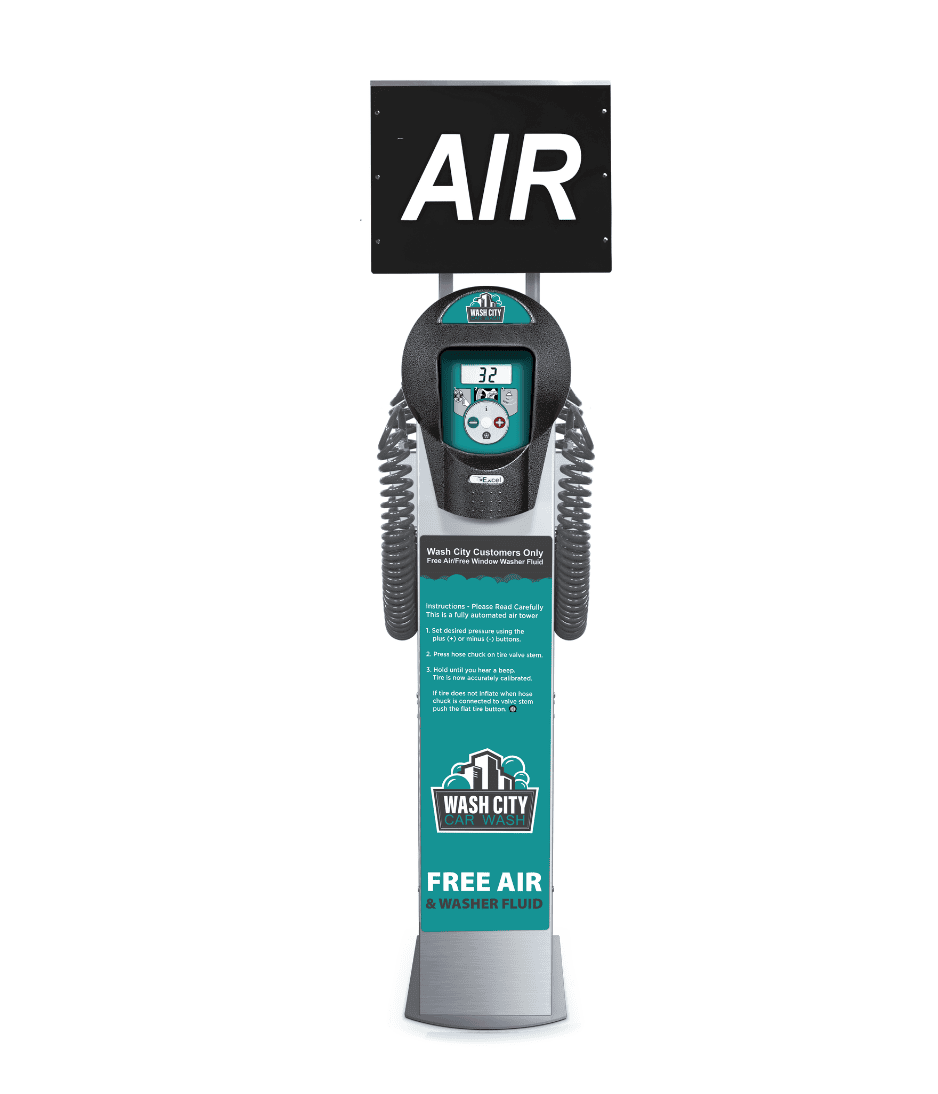

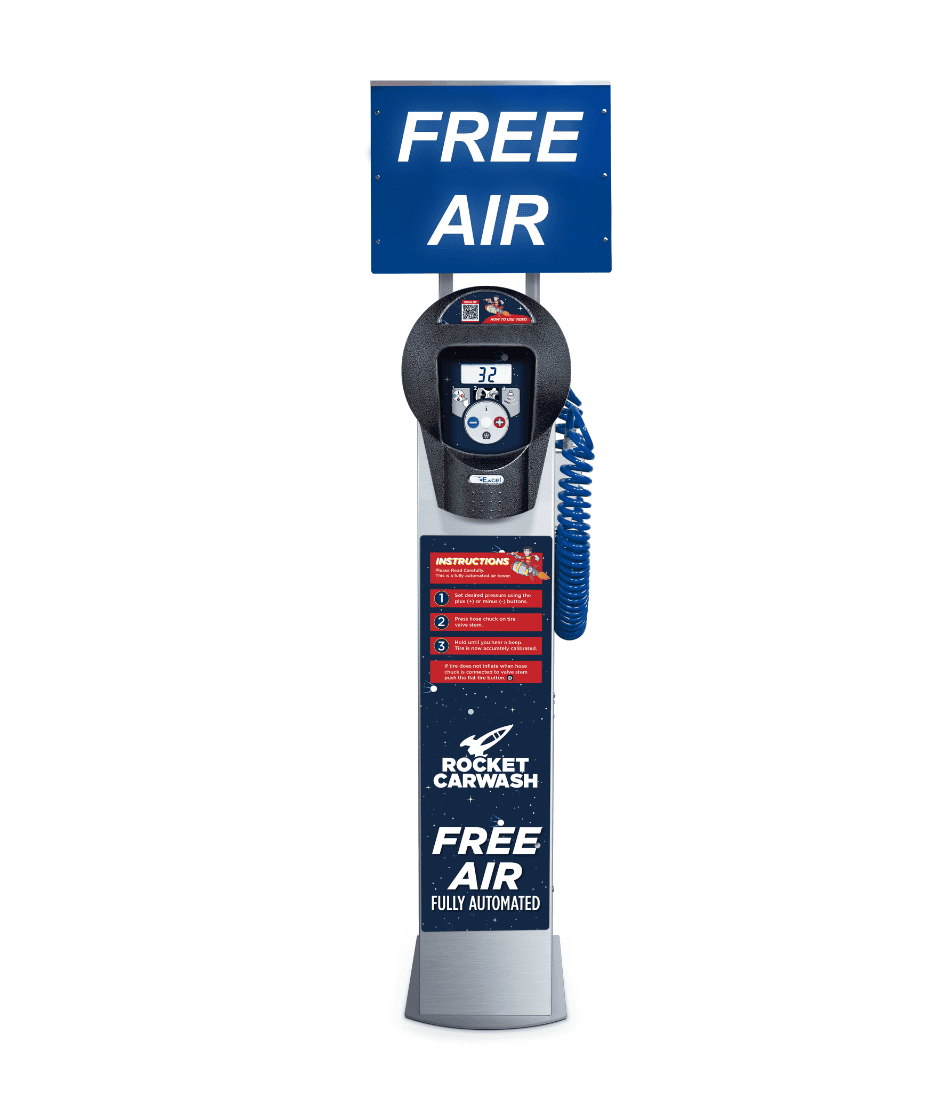

All air machine decals can be fully customized with your business logo, color, instructions information and layout.

Other Features:

Water Kit, Heater, Wireless Monitoring System, Remote Control, Choose Vending Time / Price and more.

Parts Included

Open End Hold-on Chuck
Open End Hold-on Chuck
30ft Coil Hose
Internal Air Compressor (80 PSI)
Internal Air Compressor (80 PSI)
Product NameSC05-SS Free Air Machine
Dimensions

SC05-SS (w/ Vacuum)

Height: 53.44 inches (136.00 cm)
Width: 26.69 inches (68.00 cm)

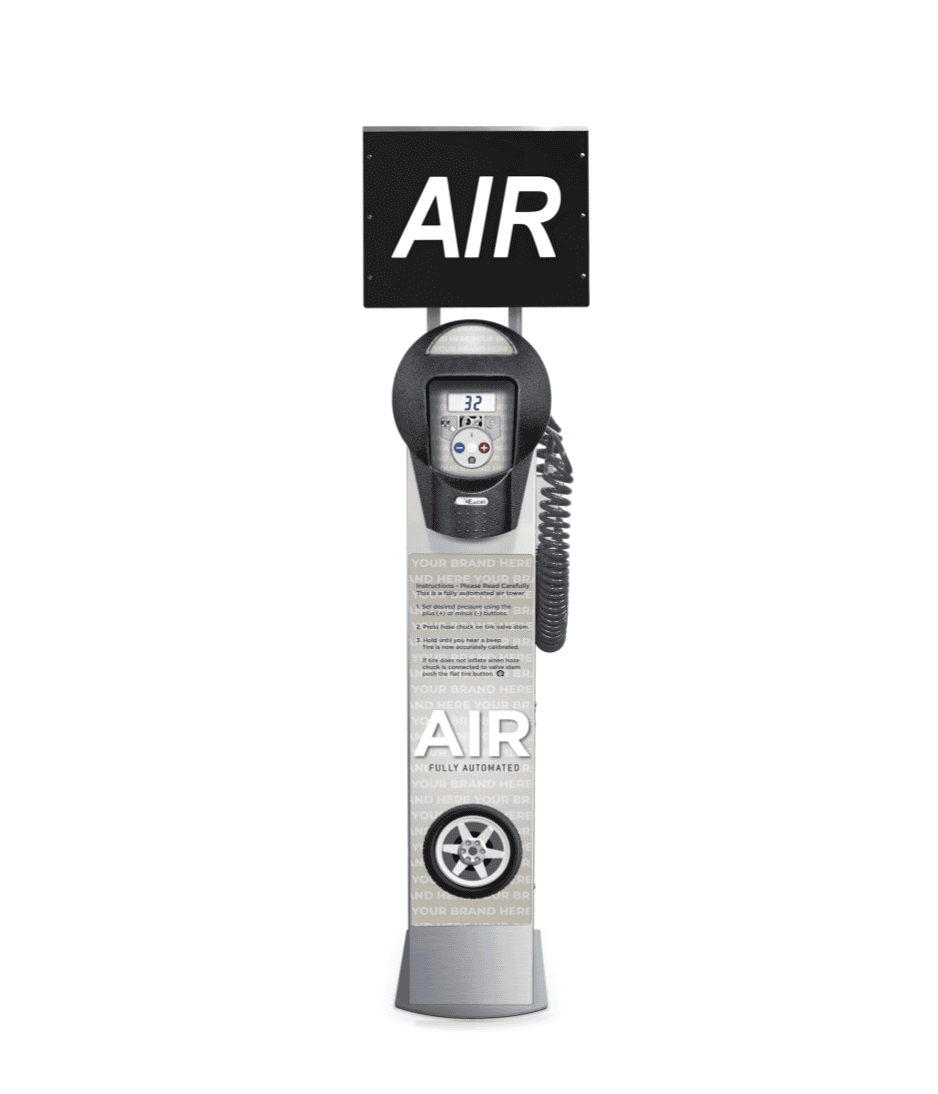

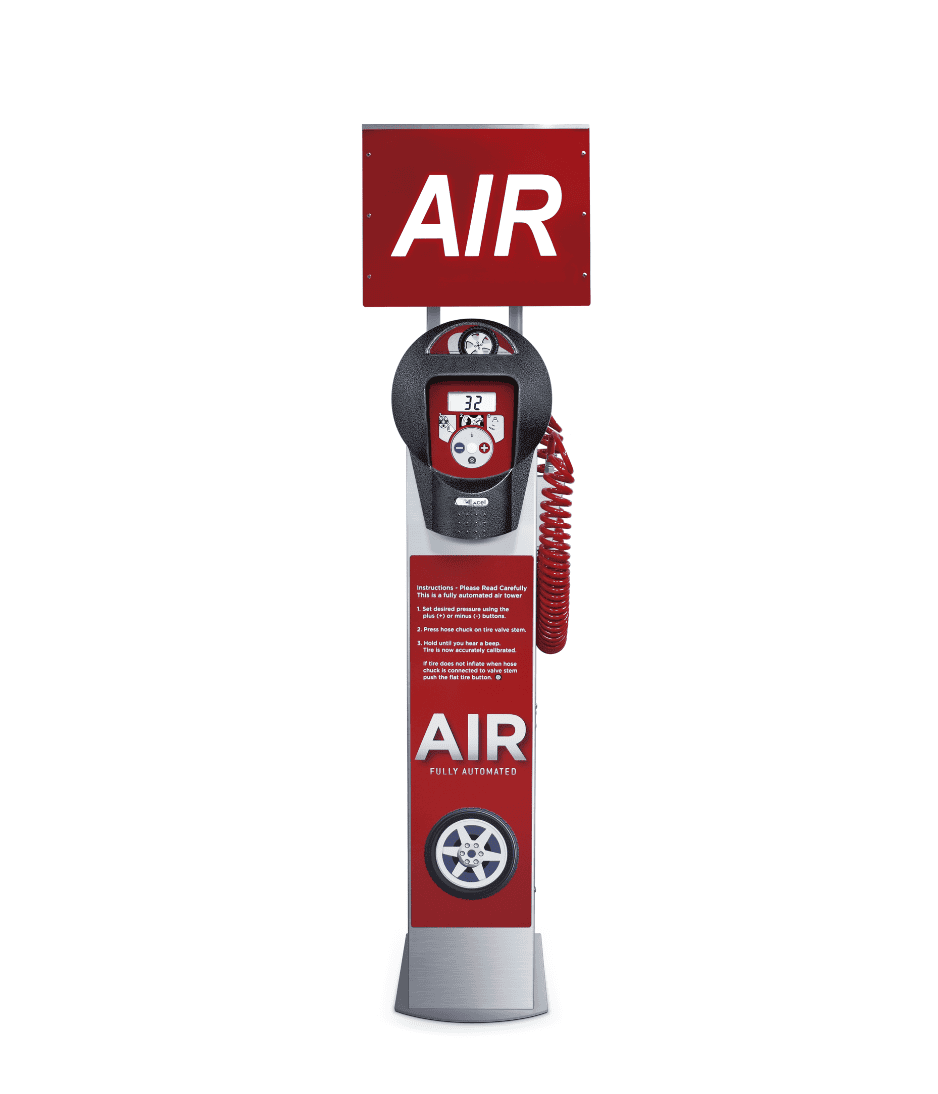

SC05-SS (w/o Vacuum)

Height: 49.87 inches (126.67 cm)
Width: 11.00 inches (28.00 cm)

Weight

SC05-SS (w/ Vacuum)

160 lbs (72.60 kg)

SC05-SS (w/o Vacuum)

110 lbs (49.90 kg)

Voltage110v
Electrical Frequency60 Hz
Electrical Consumption13 AMPS or 21 AMPS (3HP Truck Air Compressor)
Recommended Circuit Breaker20 A – Class C or 30 A – Class C (3HP Truck Air Compressor)
Air Pressure Default Setting32 PSI
Air Calibration Range4 – 80 PSI or 4 – 120 PSI (3HP Truck Air Compressor)
Average Air Flow3.4 – 2.5 CFM or 5.3 – 4.2 CFM (3HP Truck Air Compressor)
Max Pressure Output80 PSI or 120 PSI (3HP Truck Air Compressor)
Operational Temperature (w/ Heater)-30 – 140˚ F
Air Relative Humidity w/o Condensation0 – 95%
Accuracy< 1 % F.S.
Technology

Air Machine Premium Features

Digital Air Credit Card Air Machine Coin
Technology Payment Solution

Credit Card Machine

Global credit card payments are increasing at a rate 13% per year, this translates to the need to offer cashless payment options on your air machine. Our touch screen credit card reader makes it easier and more convenient when customers pay for air and vacuum services.

More powerful

Truck Air Compressor

Our heavy duty truck mounted air compressor is capable to automatic inflate tires of trucks, buses and other large vehicles. Built to offer air calibration up to 120 PSI with precision and speed.

Truck Air Compressor

Car Rental

Customer Review

Erik Sisken, New England Regional Manager for Budget-Rent-A-Car speaks on how Excel air machines have increased the longevity of his tire fleet and streamlined the process for rental cars. He also addresses the importance of proper tire inflation and how the Excel Tire Gauge has increased the safety of vehicle operators.
